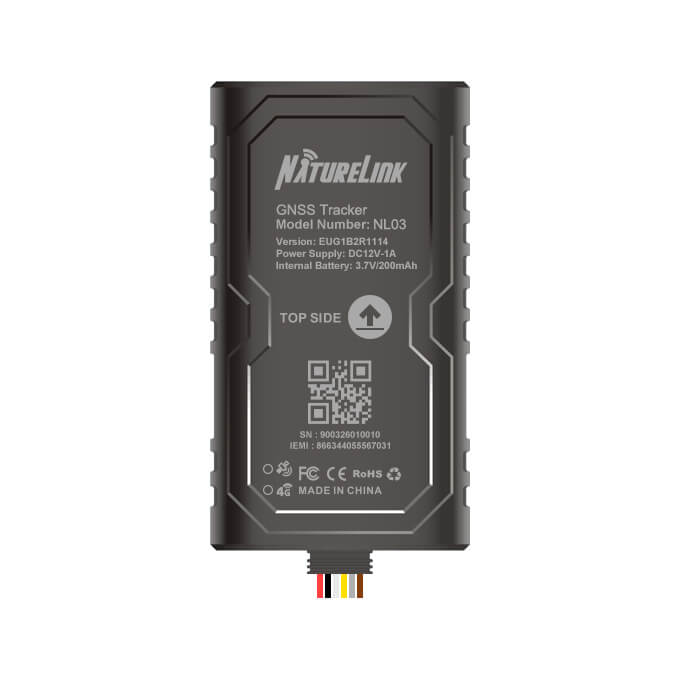

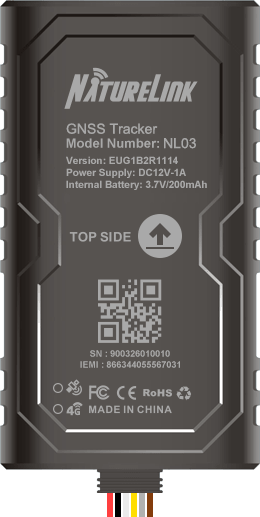

Model: NL03
GNSS Tracker
NL03 is Smarter Tracking for motorclycles and light Vehicles Designed for motorcycles and light vehicles, the Naturelink NL03 is a rugged, IP67 waterproof 4G GNSS tracker that blends compact size with serious performance. It installs in minutes, runs on any 9-90V power supply, and stays connected reliably via 4G LTE (with 2G fallback) and Bluetooth 5.0. Beyond real-time location, the NL03 actively monitors driving behavior, sends intelligent alerts, and integrates seamlessly with FMS platforms. With FOTA support and a focus on accuracy and dependability, it's the cost-effective choice for smart fleet owners who value robustness without complexity.
Product Highlights
Cost-Effective
IP67 Waterproof
Easy and fast installation
Compact and Robust
Small, Smart, Accurate, Reliable
9-90V Wide Voltage Power supply
4G LTE Connectivity and fallback to 2G network
Bluetooth 5.0 connectivity
Driving Behavior Monitoring
Multiple Alerts Supported
Integrated with FMS Platforms
FOTA (Firmware Update OTA)
Configurator
OTA, PC Configurator SMS Commands FOTA ...
Supported Worldwide FMS Platforms Integration
GPRS Protocol
Accessible for integration ...
Geofence
128 Geofences, Circle and Polygon ...
Driving Behaviors Analysis
Harsh acceleration Harsh braking Sharp cornering Overspeed Idling Crashing ...
Alarm Notification
Enter or Exit Geofence Full or Low Fuel External Power Supply Power on/Reboot Fuel Sensor falling off Rollover Alert ...
Sleep Mode
Smart sleep model Deep sleep mode ...
Reports
Trip Report ...
Product Specifications
Case Material PC
Dimension 80*44*14mm
Weight 70g
Power Cable Length 1 meter
Working Temperature -20 ~ 80°C(without Battery)
Working Humidity 0~99%
Power Supply DC 10V-90V/1A
Power Consumption 60mA / 12V
LED indicators GSM(Green) GNSS(Blue)
Internal Backup battery 3.7V, 200mAh
SIM Card Type Nano SIM
Internal Memory 64Mbit
Accelerometer 3-axis
Ingress protection IP67
GNSS
GNSS antenna
Built-in GNSS Antena
Positioning system
GPS+Glonass, GPS+Beidou, GPS+Beidou+Glonass
Positioning Accuracy
< 2.0m CEP
Receiver
GPS, BDS, GPS + GLONASS + GALILEO, GPS + BDS + GALILEO
Tracking Sensitivity
-161dBm
Acquisition Sensitivity
-146.5dBm
Hot start
3s
Cold start
< 40s
Cellular
Communication Mode
UDP/TCP/SMS/MQTT/FTP
Cellular antenna
Built-in LTE Antena
Supported Regions
Global(Different regions select different LTE module)
SMS Protocol
Supported
Data transfer
CAT1 MAX: 5Mbps(UL), 10Mbps(DL) EDGE: 236.8Kbps GPRS: 85.6Kbps
Frequency Bands
EU Version (Asia, Africa, European)
LTE-FDD
B1, B3, B5, B7, B8, B20 GSM, GPRS, EDGE: 900, 1800 MHz
Frequency Bands
SA Version (Latin America, Australia)
LTE-FDD
B1, B2, B3, B4, B5, B7, B8, B28, B66 GSM, GPRS, EDGE: 850, 900, 1800, 1900 MHz
I/O Interfaces
USB2.0
2.0 Micro-USB for configurtions, debug and FW Upgrade
Digital Inputs
3 x Digital inputs(Default), DIN2/3 can be configured to AD1/AD2, Voltage range: 0-30V
Digital Outputs
1 x Digital outputs(Default), Max 2 Digital outpus by configuration, Open Collector, Maximum controllable current: 500mA
Analog Inputs
Default is 0 analog input, Max 2 Analog inputs by configuration
Product Diagram
1. LED Indicators GNSS (Blue)
2. LED Indicators GSM (Green)
3. I/O Cable
I/O Connector

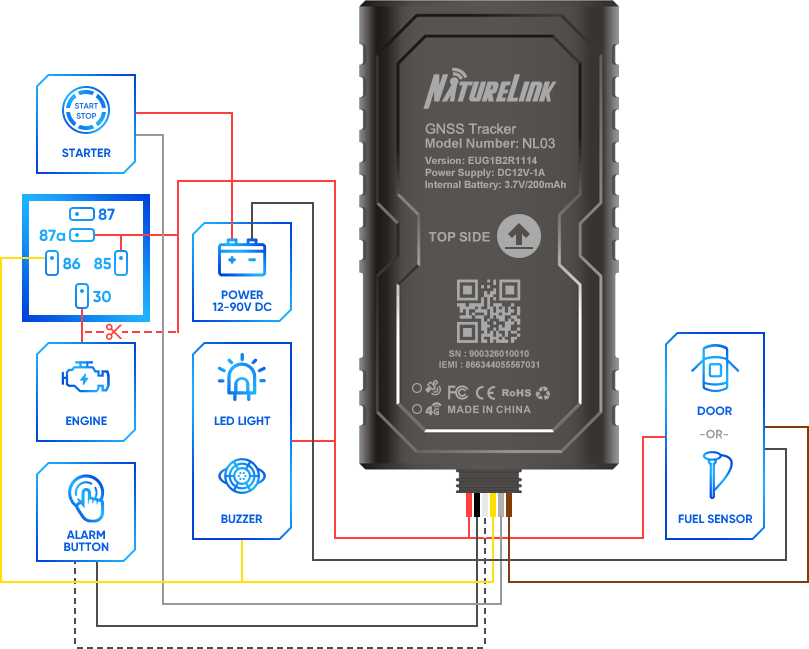

Optional Peripherals
12V/24V Relay(immobilizer)
For shutting down the fuel pump or engine remotely.
Fuel Sensor
Real-time fuel data, high fuel alert, low fuel alert, fuel theft alert.
Buzzer
For alerting driver in case of overspeeding or other preset scenarios.
Panic Button
For emergence events.
Bluetooth Sensors
Temperature and humidity sensor, BLE Beacon, BLE fuel sensor.
