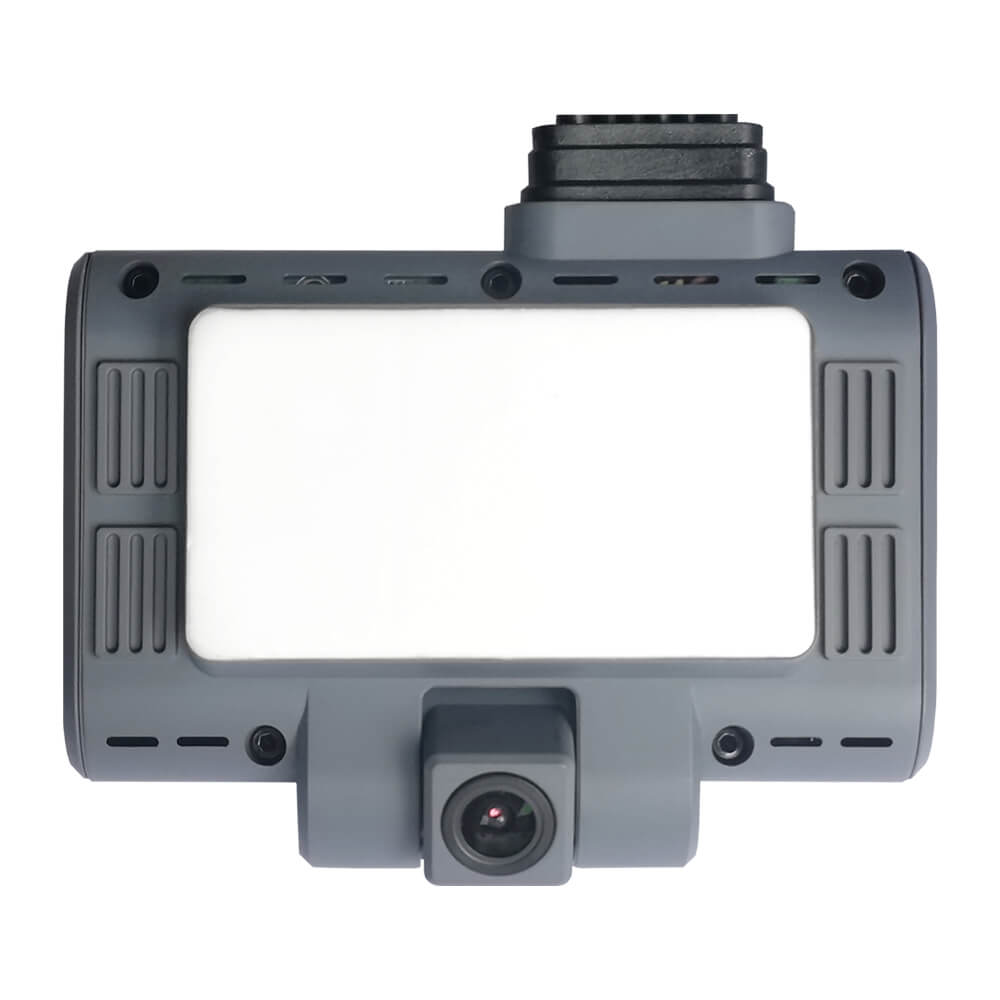

Model: NL12
4G & WIFI AI Dashcam
NL12 is an AI Dashcam with supporting DMS and ADAS functions, it is designed for vehicle video surveillance solutions. With built-in high-speed AI processor, built-in Linux embedded operating system and high accuracy AI algorithm, NL12 has excellent performance on vehicle video monitoring and AI alarms. The product can support 1 CH 1080P camera and 3 CH 720P camera, H265/H264 video code and VGA/CVBS video output. It can also support dual TF card, max storage is up to 1TB. 4G, WIFI and GNSS module are also built in our AI Dashcam NL12, it is ideal for visual fleet management solution.
Product Highlights
ADAS - Built in DMS - External
Max 4 CH Video Input
1 CH Video Output
H.265/H.264
Dual TF Card (Max 1TB)
6 Axis Acceleration Sensor
8-36V Wide Range Power
3xDIN, 1xAIN, 1xDOUT, 1xRS232 or RS485
Configurator
Supported Mouse and Mobile APP, SMS Commands
Firmware Upgrade
Local TF card, Remote via platform.
FMS Platforms
Supported CMSV6, Gurtam, Uffizio
GPRS Protocol
Supported JT808, JT1078
Driving Behaviors
Harsh acceleration, Harsh braking, Sharp cornering, Overspeed, Idling, ...
Powerful AI Alarm Function
Equipped with advanced AI technology, this device accurately recognizes various behaviors. It gently reminds you to rest when you're eye-closing or yawning. If you're distracted while driving, it immediately issues a warning to ensure safety. Detecting smoking or phone calling, it intelligently discourages these actions, maintaining a healthy driving environment. With a thoughtful seatbelt detection feature, it ensures safety belts are worn for every trip. AI empowerment makes driving more reassuring and life better.
Yawning
Eye Closing
Phone Calling
Driver Abnormal
Camera Covering
Smoking
Face Recognition
Distraction
Equipped with cutting-edge AI technology, it comprehensively safeguards your driving safety. Intelligent monitoring of vehicle distance to prevent rear end collisions, Early warning of collision risks ahead, allowing drivers to feel more at ease, Real time monitoring of lane departure to ensure driving trajectory, Accurately identify pedestrians and effectively avoid collision accidents.
Headway Monitoring Warning
Forward Collision Warning
Lane Departure Warning
Product Specifications
Linux Operating System
Dimension 70.00*111.38*37.31mm
Weight 565g
Video Input 4 CH, AHD/TVI/CVI/IPC/Analog
Video Output CVBS
Audio Input 1 Channels
Audio Output Built in 1.5W Speaker
Video Format PAL/NTSC
Video Compression H.264/H.265
Video Resolution 1080P/720P/960H/D1/CIF
Audio Formats G711A/G711U/G726
Storage TF Card
Video Local Backup TF Card
Upgrade Mode Local and remote
LED Indicator PWR/RUN Bicolor indicator
GNSS GPS/BD
WIFI 802.11b/g/n, 2.4GHz AP and Station mode
Power Output 1.5A/12V
Power Consumption Operating power: AVG 10W
Frequency Bands
EU Version
WCDMA
B1, B5, B8
GSM/EDGE
B3, B8
LTE-FDD
B1, B3, B5, B7, B8, B20, B28
LTE-TDD
B38, B40, B41
Frequency Bands
LA Version
WCDMA
B1, B2, B4, B5, B8
GSM/EDGE
B2, B3, B5, B8
LTE-FDD
B1, B2, B3, B4, B5, B7, B8, B28, B66
LTE-TDD
B40
Frequency Bands
CN Version
WCDMA
B1, B5, B8
GSM/EDGE
B3, B8
LTE-FDD
B1, B3, B5, B8
LTE-TDD
B34, B38, B39, B40, B41
GPIO & Interfaces
USB
1 Micro USB
TF Card
2 High speed TF Card
Alarm inputs
4
Alarm output
1
RS232/RS485
1
Product Diagram
Applications
Taxi System Diagram
AI dashcams enable real-time vehicle tracking, enhancing oversight and fleet management.
Detects fatigue or distractions, keeping drivers alert and focused.
Records in-cabin activity to deter crime and ensure passenger and driver safety.
Provides video proof for resolving disputes, accidents, or legal claims.
Lowers premiums by reducing risks and preventing fraudulent claims.
Pickup Truck System Diagram
Detects fatigue, distraction, or speeding and alerts drivers to stay focused.
Offers live updates on truck locations, aiding logistics planning.
Promotes safe driving, reducing accident risks.
Tracks goods in transit to prevent theft, tampering, or damage.
Provides video evidence to resolve complaints efficiently.
Standard Peripherals
Power Cable
For connecting with external power supply.
IO Cable
For general purpose inputs and outputs.
DMS Camera
For detecting driver behaviors and recording event-based video clips and snapshots.
Optional Peripherals
AHD Camera
For video monitoring and taking snapshots.
Ultrasonic Fuel Sensor
For fuel management, monitoring and fuel theft alert.
Relay
For switching off the engine on demand.
Buzzer
For alerting driver in case of overspeeding or other preset scenarios.
RFID Reader
For driver authorization and attendance management.
Rotating Magnetic Sensor
For monitoring the rotation direction and speed of the ReadyMix drum.
Extension Cable
For power cable extension to facilitate installation.
TF Card
Industrial level micro SD card for video and tracking data storage.
